Σφραγίδα ασφαλείας με καρφί UHF RFID τριών ελέγχων SOTER SEAL

Περιγραφή

LeghornGroup’s SOTER SEAL security seal is a durable UHF RFID security seal that combines high mechanical security with the electronic security offered by RFID, automatic radio frequency identification technology.

It is the first RFID security stamp with a nail – compliant with ISO 17712 technical standards – available on the market and able to provide status information, UNLOCKED, LOCKED OR TAMPERED , which is stored on the RFID chip. For this reason, the product has been called ” three-level control “.

The outer polypropylene plastic casing of the seal – with printed logo and serial numbering on request – incorporates a unique and latest generation electronic chip, which has its own unique code, which cannot be reproduced. This allows safe and reliable automatic identification of the security seal placed on the container or vehicle.



technical plan



SOTER SEAL

• It has a unique ID code and read/write user memory capabilities.
• It simultaneously offers immediate and accurate identification of the security seal and the state of the seal, i.e. open / locked and compromised.
• It is an ideal solution for guaranteeing cargo security and tamper control along the supply chain and transportation.

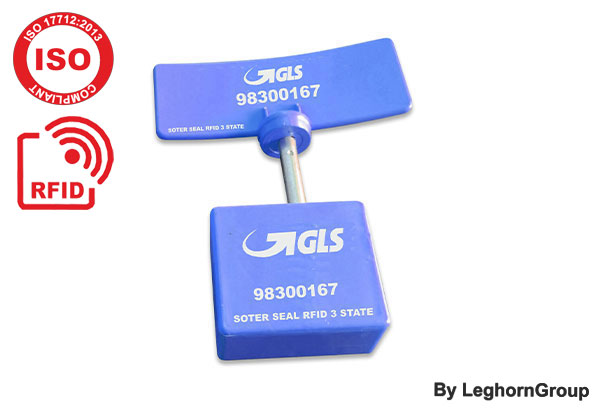

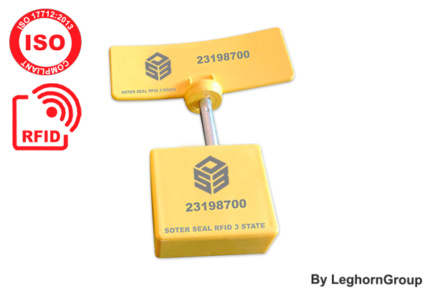

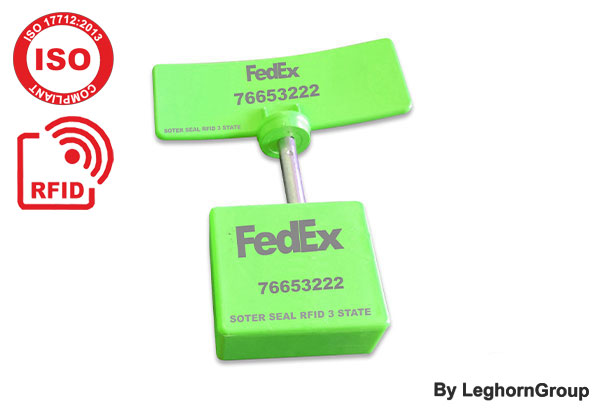

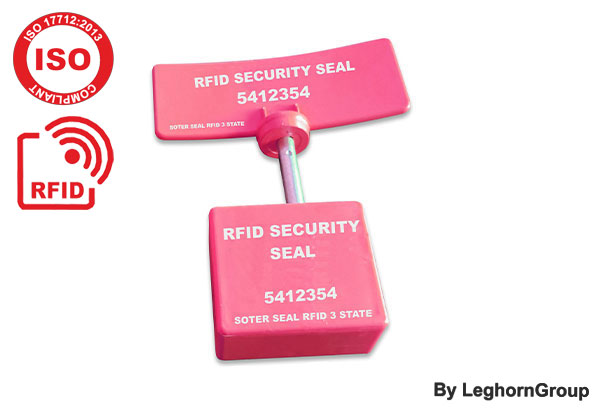

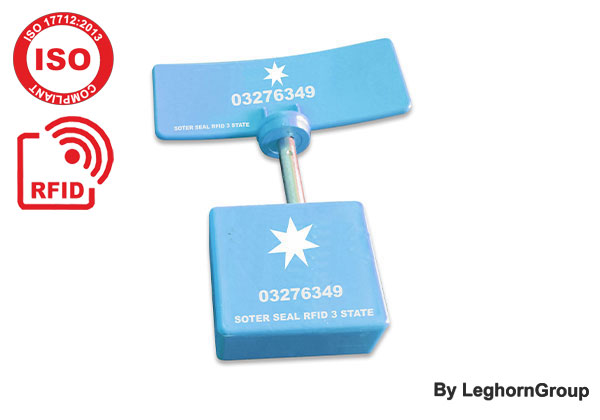

COLORS & LOGOS



RADIO FREQUENCY CHARACTERISTICS

• Frequency: 860 – 960 MHz
• Reference RF standard: EPC Class 1 Gen2 / ISO / IEC 18000-6C
• Technology: Passive
• RFID IC: NXP G2iM+
• User read/write memory: up to 640 bits
• Memory size: from 128 bits to 448 bits of EPC memory
• TID (Tag IDentifier): 96 bits, including 48-bit univocal factory lock progressive numbering. 112-bit user TID memory
• Password protection: yes
• Tamper detection: yes – TRIPLE CHECK DETECTION
• Read / write cycle: 10000
• Data retention: 20 years



PERFORMANCE

• Reading distance from a portable reader: 2 m (depending on the reader)
• Reading distance on a gate reader: 5 m (depending on the reader)
• Quality: 100% Performance Tested)



MECHANICAL CHARACTERISTICS

• IP protection: IP65
• Operating temperature: – 20°C / + 55°C
• Storage temperature: – 30°C / + 80°C
• ISO 17712:2013 Clauses 4, 5 and 6: Yes
• • Material: steel + polypropylene according to the Restriction of Hazardous Substances (RoHS), European Directive 2002/EC.



dimensions

• Electronic label: 48×117×4 mm
• Metal pin length: 67 mm
• Diameter of metal pin: 8 mm
• Bolt Size: 56×63×26mm
• Weight: 114 gr

ΑΠΑΙΤΟΥΜΕΝΑ ΠΙΣΤΟΠΟΙΗΤΙΚΑ ΓΙΑ Η ΧΡΗΣΗ ΚΛΕΙΔΑΡΩΝ ΥΨΗΛΗΣ ΑΣΦΑΛΕΙΑΣ ISO 17712:2013

MIRDC certificate
