Σφραγίδες με συρματόσχοινο RFID ANTI-TAMPER
RFID Anti-tamper wire security seals with tamper indication
Περιγραφή

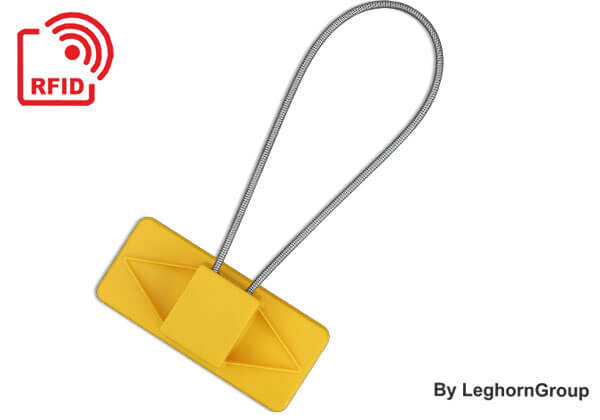

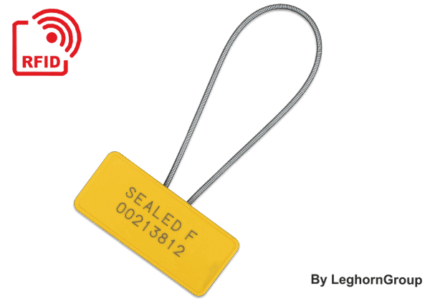

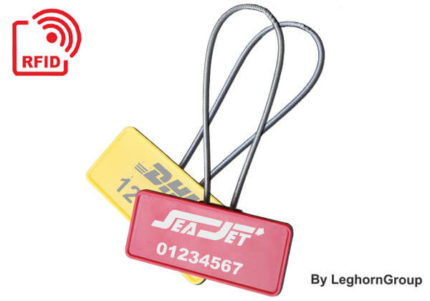

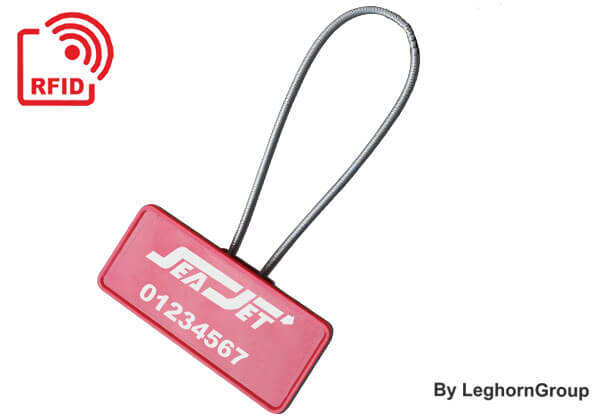

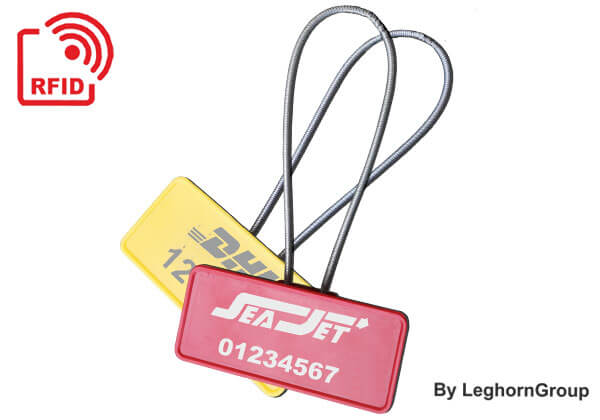

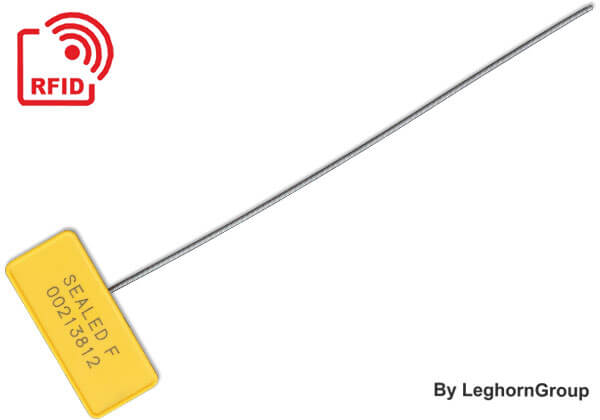

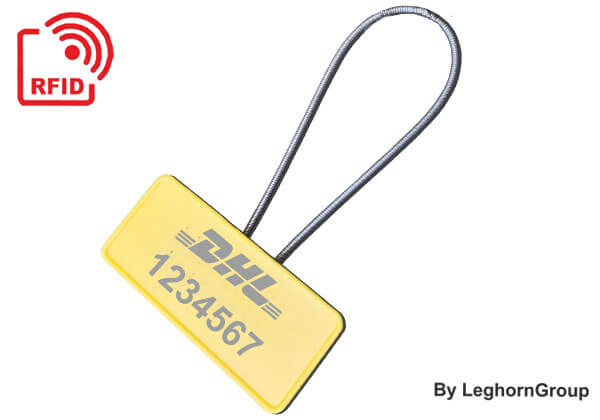

Cable and RFID Anti-tamper Security Seals combine the mechanical security of traditional LEGHORN CABLE SEAL security seals with the electronic security offered by Automatic Radio Frequency Identification, RFID technology.
The plastic body of the seal, made of durable ABS, includes an electronic chip with a unique, non-cloneable code that not only allows you to automatically identify the container or transport vehicle on which the seal is placed, but also allows you to read instantly and completely reliably, the state of violation of the seal itself.
The evolution of the RFID security seal, is the RFID ANTITAMPER security seal.
Wire rope RFID Anti-tamper seals:
– It is a high security seal.
– Uniquely identifies the container or vehicle in which it is placed.
– It can be read quickly and reliably by fixed reading systems installed at vehicle crossing gates or by mobile devices provided to personnel responsible for control, providing information about its code, such as the status of the RFID stamp.
– Compared to the standard RFID stamp, it is also able to record the tampering event in its memory by activating the status bit – TAG TAMPER ALARM, thus providing an immediate indication, in the reading phase, of the state of the stamp (tampered / not tampered ).
– It may contain additional information, written in a password-protected manner into the chip’s memory by the equipment that serves as a reader.
specifications
Radio Frequency specification
Frequency:……………………………..860 – 960 MHz – UHF EPC Global
Reference RF Standard:…………………..ISO/IEC 18000-6C
RF Protocol:…… ………………………EPC Class 1 Gen2 / ISO/IEC 18000-6C
Technology:……………………………….Passive
Integrated circuit………………………NXP
Mechanical specification
Material……………………….Aluminum ABS or polystyrene in accordance with Restriction of Hazardous Substances (RoHS) listed in the European Directive 2002/EC.
IP Protection…………………………..IP66
Operative Temperature……………………- 30°C / 80 °C
Storage Temperature……………………..- 30°C / 80 °C
Size Electronic Part (flag)………………42x115x4 mm
Wire standard length…………………….337 mm
Wire diameter…………………………..3.5 mm
Weight …………………………………61 g
ISO 17712:2013………………………….Yes
Package size…………………………cm
Package weight……… ………………….6.1 kg
Package number seal for box………………100 pcs
Electronic specification
Reading distance handheld reader………….3 m (dependig on reader)
Reading distance gate reader……………..8 m (dependig on reader)
Quality:……………………………… .100% performance tested
User Memory:…………………………Yes
Read / write cycles:…………………….10000
Memory size:…………………………from 128 bit up to 448 bit of EPC Memory; up to 640 bit of User Memory
Password protection:…………………….Yes
Tamper Detection:…………………….Yes
TID (tag unique identification) :………….Yes
S/N in memory (same of seal):…………….Yes
Data retention:……………………20 years
Integration with handheld reader:…………commercial PDA, OS ANDROID
Integration with gate reader……………..commercial industrial reader

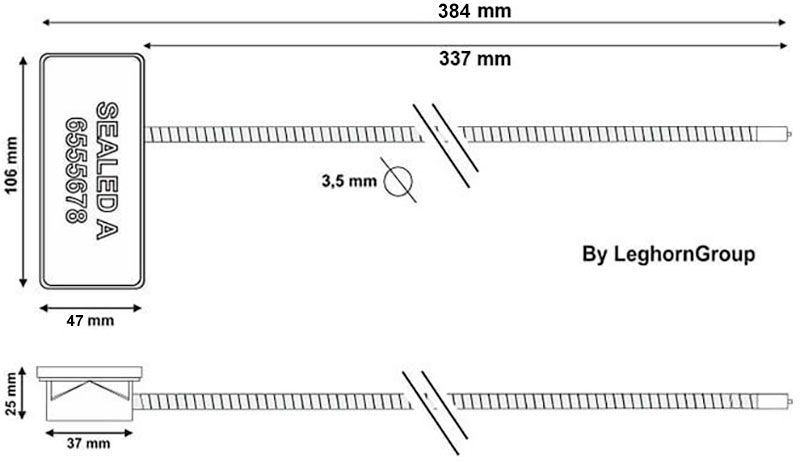

technical plan

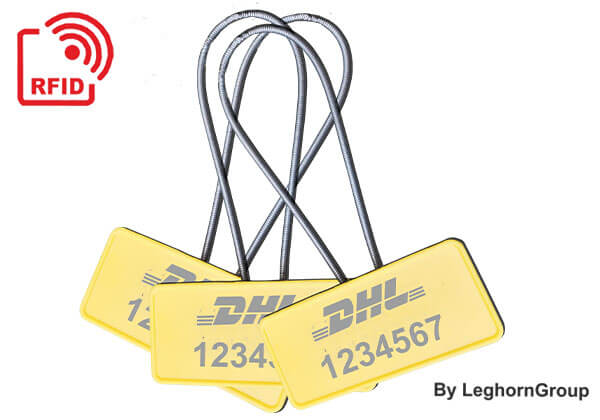

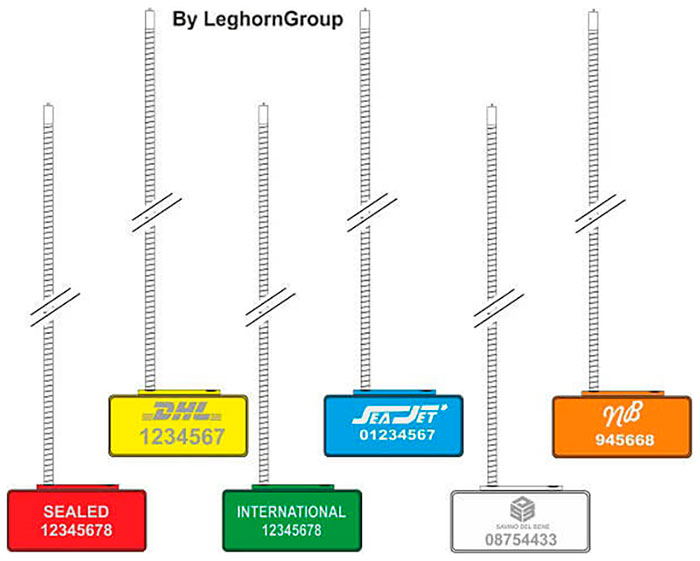

COLORS & NUMBERING
*ALSO AVAILABLE IN THE LOGISTIC EDITION
Τρόπος Χρήσης

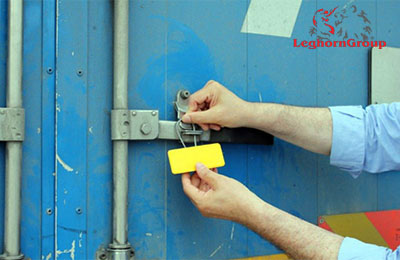

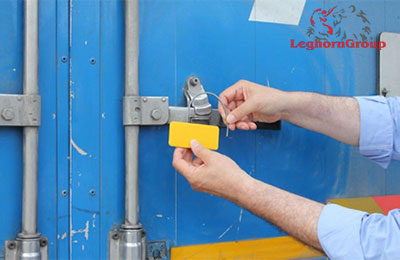

A) Place the wire end of the antitamper seal in the slot on the container door.
B) We place the same antitamper wire in the slot in the seal body.

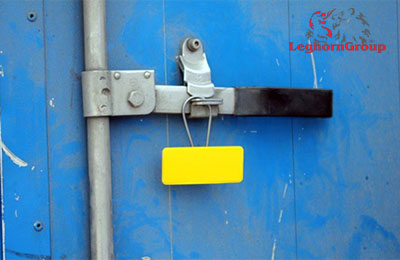

C) We pull as much as necessary. When we insert the wire antitamper, the internal mechanisms of the seal lock it.

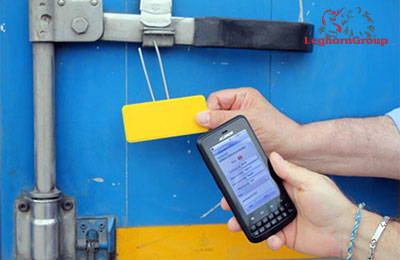

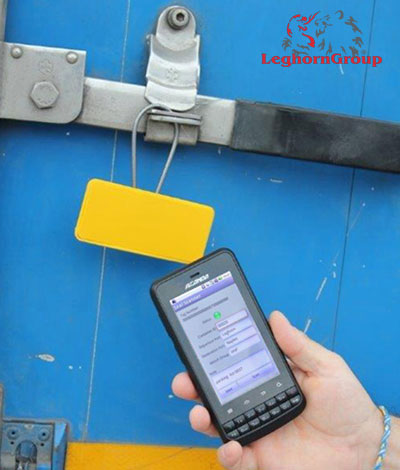

D) We check with the RFID reader that the seal is active and closed correctly. A green indicator confirms correct reading and seal integrity.

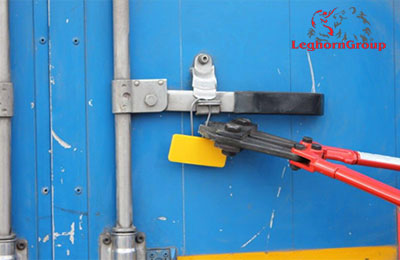

Ε) Όταν το κοντέινερ φτάσει στον προορισμό του η σφραγίδα ασφαλείας RFID ANTITAMPER θα ελεγχθεί ξανά εάν έχει παραβιαστεί, και αν όλα είναι σωστά θα κοπεί με έναν ειδικό κόφτη.
ΣΤ) Ελέγχουμε εάν ο αναγνώστης RFID επιβεβαιώσει την κοπή. Μία κόκκινη ένδειξη θα πρέπει να επιβεβαιώσει το γεγονός της παραβίασης της κοπής.
Πιστοποιητικά
Πιστοποιητικό SGS
